800hp 597kw F Series Triplex Piston Mud Pump 396320252410

Brand Name : XW

Model Number : F-800

Certification : ISO9000

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 100

Delivery Time : 30

Power Rating : 597

Stroke Rating : 150

Stroke Length : 9“/228.6

Gear Ratio : 4.185

Inlet Dia : 10“/254

Outlet Dia : 5-1/8"Flange 5000psi

Contact Now

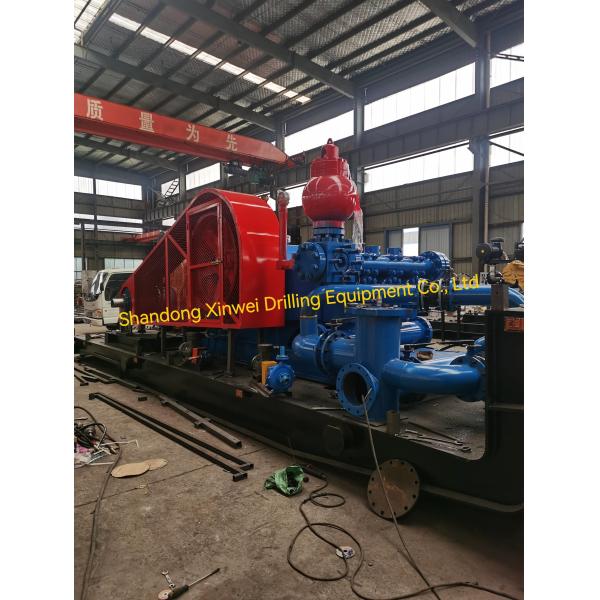

800 hp/kw 3963*2025*2410 F-Series Triplex Mud Pump

800hp 597kw F Series Triplex Piston Mud Pump 3963*2025*2410

F-800 Technical Specifications

Type			Horizontal Triplex Single Acting Piston Pump			Gear Type			Herringbone Gear
Rated Input Power (KW/HP)			597/800			Gear Ratio			4.185:1
Rated Stroke (SPM)			150			Lubrication			Forced & Splashing
Stroke Length (mm/in)			228.6/9〃			Valve Cavity			API-6#
Inlet Connection			10〃(254mm)			Outlet Connection			5 1/8〃Flange 5000PSI
Weight(Kg/Pound)			14500/31970			Overall Dimension (L×W×H)			3963×3146×2321mm
SPM	Rated Power		Liner Dia.(in) and Pressure Rating (Mpa)/(psi)
			6-3/4	6-1/2	6-1/4		6	5-1/2	5	4-1/2	4
			13.56 1965	14.63 2120	15.82 2295		17.16 2490	20.43 2965	24.72 3585	30.51 4425	35 5075
	HP	KW
			Displacement (L/S)/(gpm)
150	800	597	39.58 627	36.70 582	33.94 538		31.27 496	26.28 417	21.72 344	17.59 279	13.90 220
140	747	557	36.94 586	34.26 543	31.67 502		29.19 463	24.53 389	20.27 321	16.42 260	12.97 206
130	693	517	34.30 544	31.81 504	29.41 466		27.10 430	22.78 361	18.82 298	15.25 242	12.05 191
120	640	477	31.67 502	29.36 465	27.15 430		25.02 397	21.02 333	17.37 275	14.07 223	11.12 176
110	587	438	29.03 460	26.92 427	24.89 395		22.93 363	19.27 305	15.93 252	12.90 204	10.19 162
Based on 100% volumetric efficiency and 90% mechanical efficiency

Shandong XinWEI DRILLING EQUIPMENT Co., Ltd. is one of the most well-known manufacturers of trenchless equipment and oilfield equipment in China. After years of unremitting efforts, it has grown into a small but powerful enterprise. Our products cover the entire field, trenchless, from a very small spare part to a very large complete rig system. Our MAIN PRODUCTS are: pump SPARE parts, mud pumps and complete sets of equipment, DC/AC motor, solid control equipment, power plant, vehicle drilling rig, workover rig, land drilling rig, drill pipe and drilling tools, etc. Based on the needs of customers, to provide customers with the best products and services. We focus on providing the best solutions for the maintenance and supply of equipment and spare parts to our overseas oilfield customers.

We welcome the establishment of win-win cooperation with partners all over the world, every customer is our God and helper. Warmly welcome you to visit China!
